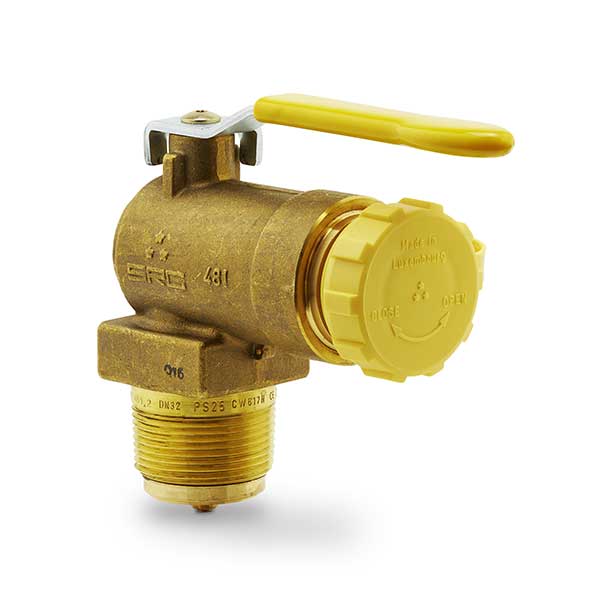

LPG TANK STORAGE FILLER VALVES - 481-210 SERIES
- The SRG type 481-210, angled version, manual isolation filler valve is specifically engineered for the rapid filling of large static tanks and domestic storage tanks containing LPG.
Valves are fitted with a resilient seat disc as the primary closure, ensuring effective sealing, and further supported by a metal-to-metal back check valve, providing an additional layer of security.
The addition of a manually operated ball valve between the two closures makes the system totally secure. When the manual isolation valve is opened, both back checks open the flow of liquid and close automatically when the flow stops.
Key advantages
- Angled version
Specifications
Inlet | 1 ¼ " NPT | |
Outlet | 1 ¾ “ ACME |
