Series 652-1 | Rotarex SRG

LPG QUICK COUPLING REGULATOR: JUMBO ADAPTER - 652-1 SERIES

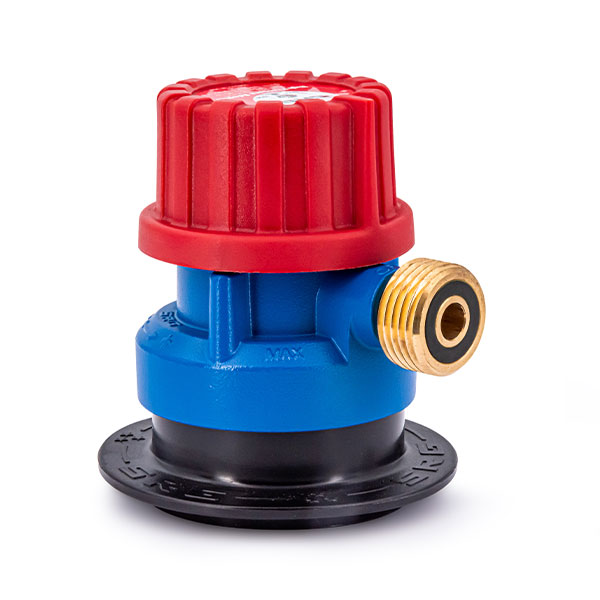

Adapter LPG Quick coupling Jumbo with Cylinder

The NEW SRG Jumbo Adapter is a consequent step in making our products more economic, while still giving the best performance in the market.

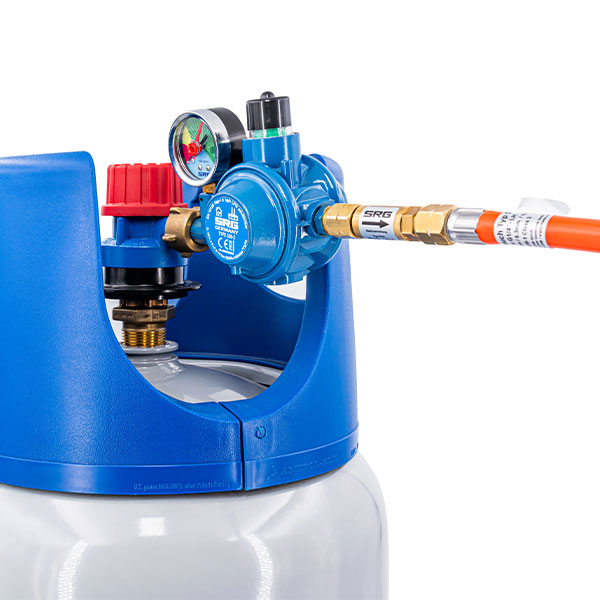

In connection with the SRG cylinder valve, it will deliver controlled, but unreduced high gas pressure which is required to feed industrial applications.
No tools are required to connect the regulator to the valve.

Key advantages

This adapter with high pressure capability enables the utilization of a pressure regulator alongside either a small bottle connection (KLF) or a G.12 connection on bottles equipped with a clip-on extraction valve.
The clip-on adapter is compatible with gas cylinders originating from Spain, France, Ireland, Portugal, England, Cyprus, Finland, Norway, Sweden, and Denmark.
It facilitates the transformation from a clip-on G.56 - 35mm connection to an output with a small bottle connection (KLF) G.12, maintaining unreduced output pressure that necessitates the use of a pressure regulator.

Contact an expert
Download datasheet

Specifications

Inlet	35 mm to EN 15202
Outlet	Nozzle 8, for hose with 8 mm inner diameter, to EN 16129 Nozzle 10, for hose with 10 mm inner diameter, to EN 16129 Nozzle 3/8 BSP-LH Other outlet connections available on request
Outlet Pressure	Unreduced
Colors	Blue grey Silver Other colors on request
