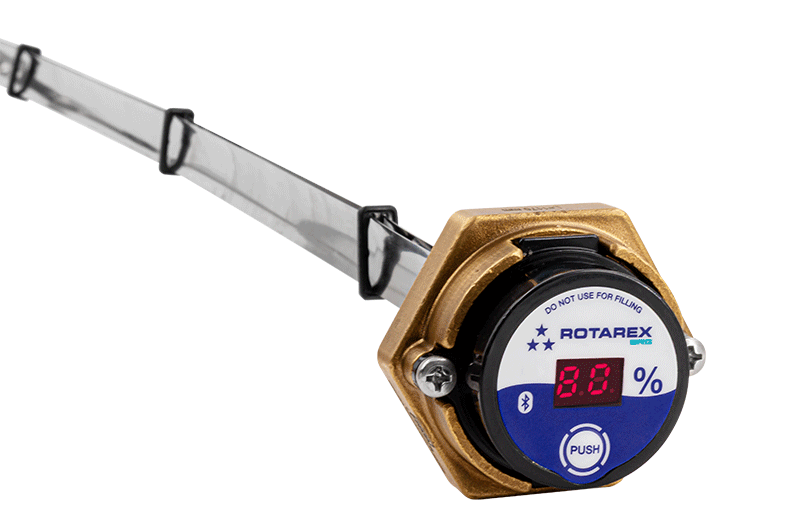

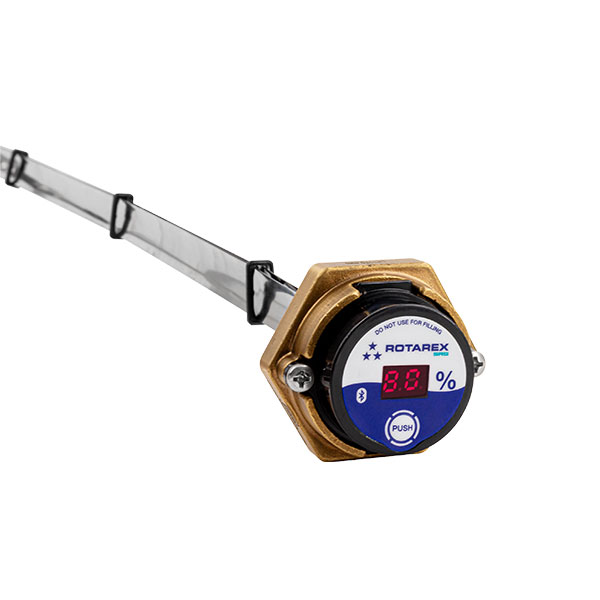

Electronic Level Gauge C-Flex Series 487

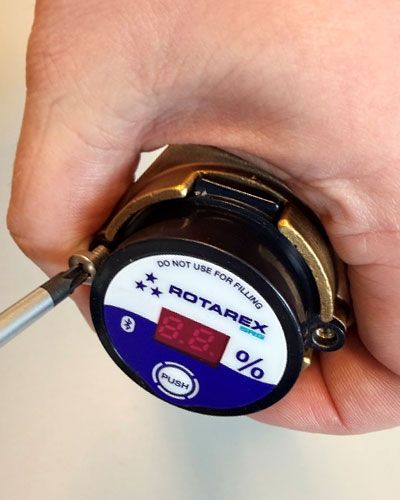

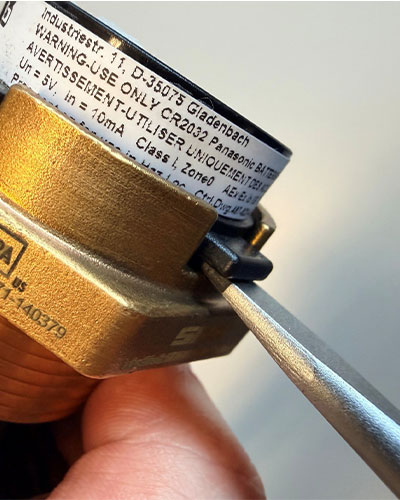

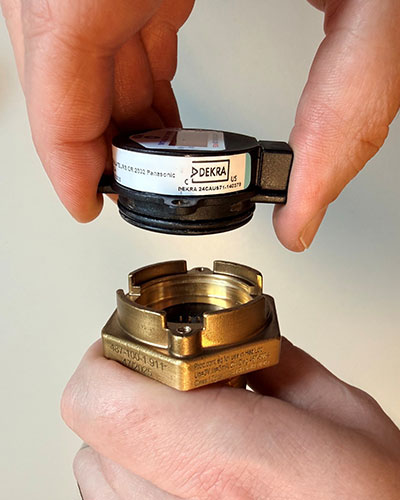

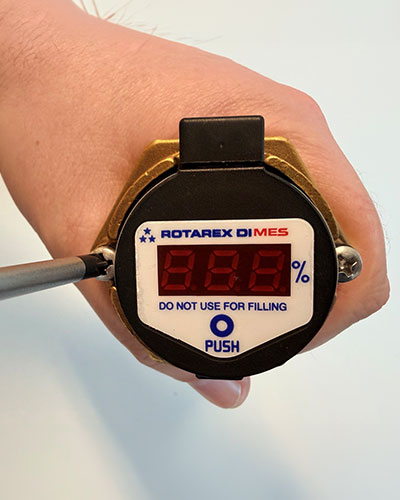

Rotarex ELG C-Flex is an electronic level gauge with a highly flexible capacitive level probe for stationary tanks and cylinders. It is compatible with standard connections and features a replaceable, waterproof display that can be rotated for improved visibility.
- Superior accuracy +/- 1% (over full scale) compared to mechanical devices
- Direct replacement for mechanical level gauges

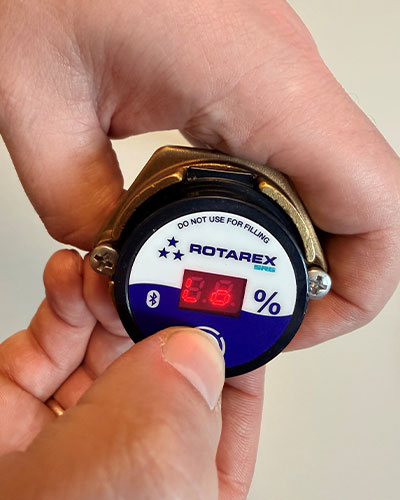

- On-site calibration to FULL
- No moving parts enhances reliability and durability

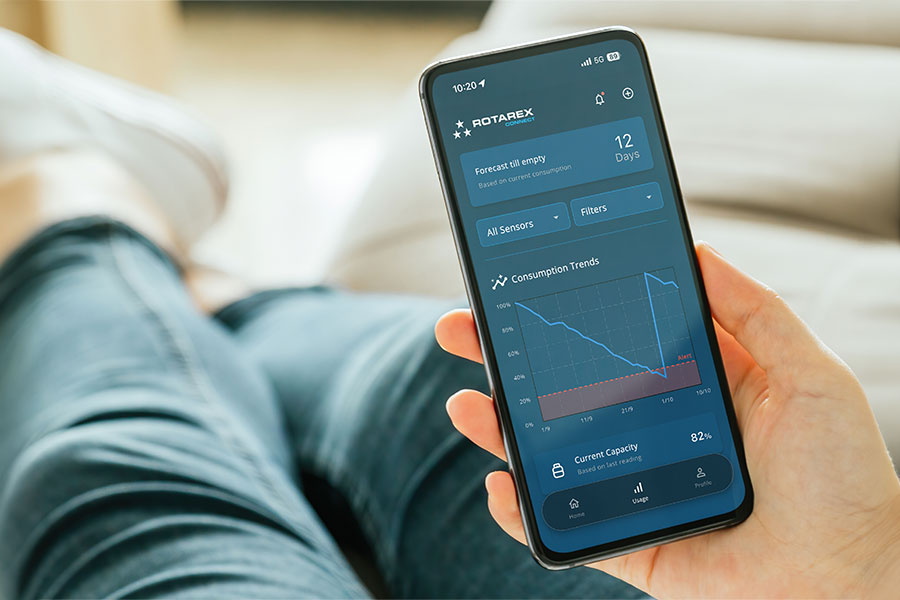

- Plug-and-Play remote monitoring options
- IP57-certified
video
Specifications
| Electrical specifications | Battery CR2032 (3V) | |
| Working pressure | 30 bar | |
| Accuracy / resolution | +/- 1% | |
| Output signal | 0,5-4,5V ratiometric at 5V supply voltage | |
| Wiring | JWPF - 3 PINS | |
| materials | Housing: brass Sensor: Stainless steel Seal: NBR | |
| Working temperature | -25°C to +60°C | |
| Connection to the tank | Junior head with 4 screws 1" NPT | |
| Atex certification according to | Standards: IEC 60079-0 : 2017 (Ed. 7.0) & IEC 60079-11 : 2011(Ed. 6.0) Code (e.g. Ex II T ): II 2 G Ex ib IIB T3 Gb Class: Ui = 8 V; Ii = 220 mA; Pi = 0,7 W; C i = 2,9 F; Li = 0,1 mH | |
| Certified max. outboard leak rate at max. pressure | ≤ 1 x 10-3 mbar.l/s | |
| Type of gas | LPG (propane, butane or mixture of these 2 gases) |
